Toothed Spring Pins

Material

Spring Steel 1065~1095

Stainless steel #304, #420

Finish

Zinc Plated,  Plain.

Dimension

Normally, the diameter is small such as from 1.6mm to 3mm.

Reference

JIS B 2808, ISO 8752

Usage

Same with Slotted Spring Pins. But making toothed slot instead of straight slot. The parts when apply to the instruments, especially the electric wire pass through the inner space of Spring Pin, can prevent the electric wire going out of the Spring Pin body. So this type of Spring Pins are normally assembling in the electric equipment.

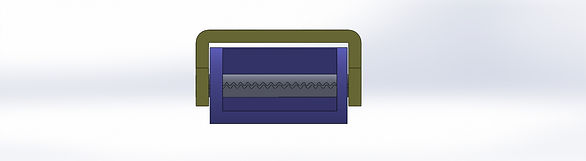

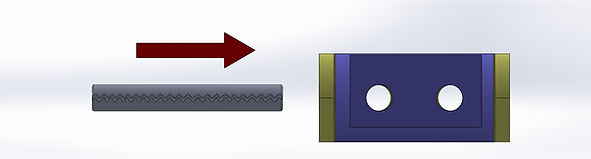

Application

YUNG KING INDUSTRIES CO., LTD.

Pin · Retaining Ring · Clip · Washer

3D View

2D View
